MPI is a library used by distributed memory systems.
It follows the Single-Program Multiple-Data (SPMD) model, so a the same program is executed by multiple processes, that communicate through message passing.
MPI’s functionalities are included in the C mpi.h header file, which needs to be included by any program that uses MPI. Identifiers defined by MPI start with MPI_, and the first letter following the underscore is uppercase.
compiling and execution
To compile, run:
mpicc -g -Wall -o mpi_hello mpi_hello.c
-g produces debugging information
-Wall turns on all warnings
To execute, run:
mpiexec -n <number of processes> <executable>
n processes will execute the program
Parallel debugging is trickier than debugging serial programs - it can be useful to use MPI with ddd (or gdb) on one specific process:
Every MPI process is defined by a unique nonnegative rank (0 to p-1, with p = # of processes)
communicators
As previously mentioned, MPI processes communicate via messages.
Communicators are collections of processes that can send messages to each other.
MPI_Init() defines a communicator (called MPI_COMM_WORLD) made up of all the processes created when the program is started
after the MPI calls, before exiting, MPI_Finalize() must be called
There are two functions needed to operate with communicators:
int MPI_Comm_size( MPI_Comm comm /* in */ int* comm_sz_p /* out */)
given a communicator comm, it writes the number of processes it contains (cardinality) in comm_sz_p, given in input
it writes in the pointer given in input instead of returning because the return value is used for the operation’s state - whether it was successful, or it returned an error (and which error)
int MPI_Comm_rank( MPI_Comm comm /* in */ int* my_rank_p /* out */)
writes the rank, relative to comm, of the process making the call in my_rank_p
message sending
nonovertaking messages
MPI requires that messages be nonovertaking: if process q sends two messages to process r, the first message sent by q must be available to r before the second message.
there is no restriction on the arrival of messages sent by different processes
functions
sending a message:
int MPI_Send( void* msg_buf_p, // in int msg_size, // in MPI_Datatype msg_type, // in int dest, // in int tag, // in MPI_Comm comm // in);
where:
msg_buf_p ⟶ start address of the memory block that needs to be sent
void* - any kind of data can be sent
msg_size ⟶ number of elements in the message (= number of bytes, the size is deduced from msg_type)
msg_type ⟶ type of data that is being sent (types defined by MPI_Datatype; new types can be created if needed)
dest ⟶ rank of the receiver
tag ⟶ used to identify messages (optional) - needs to match with the receiver’s in its MPI_Receive
comm ⟶ communicator to be used
receiving a message:
int MPI_Recv( void* msg_buf_p, // in int buf_size, // in MPI_Datatype buf_type, // in int source, // in int tag, // in MPI_Comm comm, // in MPI_Status* status_p // in);
where:
msg_buf_p ⟶ pointer to the address starting from which the data will be written
source ⟶ rank of the sender (can be a special value like MPI_ANY_SOURCE)
tag ⟶ has to match the sender’s MPI_Sendtag
status_p ⟶ more information about the receive (eg rank of the sender if MPI_ANY_SOURCE is used)
knowing how much data is being received:
int MPI_Get_count( MPI_Status* status_p, // in MPI_Datatype type, // in int* count_p // out);
status_p ⟶ status of the receive (identifies the communication)
type ⟶ type of data being received
count_p ⟶ “return” value: how many types have been received
data types
MPI datatype
C datatype
MPI_CHAR
signed char
MPI_SHORT
signed short int
MPI_LONG
signed long int
MPI_LONG_LONG
signed long long int
MPI_UNSIGNED_CHAR
unsigned char
MPI_UNSIGNED_SHORT
unsigned short int
MPI_UNSIGNED
unsigned int
MPI_UNSIGNED_LONG
unsigned long int
MPI_FLOAT
float
MPI_DOUBLE
double
MPI_LONG_DOUBLE
long double
MPI_BYTE
MPI_PACKED
A message is successfully received if:
recv_type = send_type
recv_buf_sz >= send_buf_sz (i can send less bytes than i can receive)
A receiver can get a message without knowing:
the amount of data in it
the sender (wildcard MPI_ANY_SOURCE)
the tag of the message (wildcard MPI_ANY_TAG)
To find out, you can operate on &status, an MPI_Status-type argument (the last argument of an MPI_Recv):
status.MPI_SOURCE to find the source
status.MPI_TAG to find the tag
status.MPI_ERROR to find the error code
issues with send and receive
Some things are well-defined (tags, id), but others have been left up to the implementation:
MPI_Send may behave differently with regard to buffer size, cutoffs and blocking
with an MPI_Send, there is no way of knowing if the message has been sent and whether it has arrived, so the next instruction could be executed with the message still inside the process; the only guarantee is that, when the next instruction is executed, if the buffer (with the message) is modified, the correct data will be sent anyway (even if the message hadn’t left yet) (MPI might make a copy of it, or something similar)
different implementations handle this differently
MPI has a buffer for sent messages that haven’t been received; if the message is too big, instead of using the buffer, the sender will check if the receiver is ready (rendezvous).
MPI_Receive blocks the process until the message is received (so, when it ends, there’s a guarantee that the buffer has been received).
if a process tries to receive a message and there’s no matching send, the process will hang
if a call to MPI_Send blocks and there’s no matching receive, the sending process can hang
if a call to MPI_Send is buffered and there’s no matching receive, the message will be lost
if the rank of the destination process is the same as the source process, the process will hang (or worse, the receive may match another send)

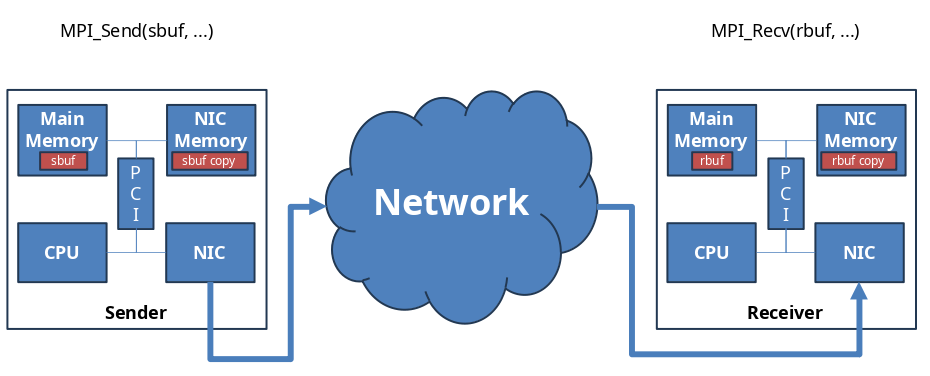

what happens when you do a send?
point-to-point communication models
As explained above, MPI_Send uses the so-called standard communication mode: based on the size of the message, it decides whether to block the call until the destination process collects it or (if the message is small enough) to return before a matching receive is issued (locally blocking).
There are three more communication models:
buffered ⟶ the sending operation is always locally blocking (it will return as soon as the message is copied to a buffer), and the buffer is user-provided
synchronous ⟶ the sending operation will return only after the destination process has initiated and started the retrieval of the message (globally blocking - the sender can be sure of the point the receiver is at without any further explicit communication)
ready ⟶ the send operation will only succeed if a matching receive operation has already been initialised (otherwise, it returns an error code); used to reduce the overhead of handshaking operation
the different modes are implemented with MPI_Bsend(), MPI_Ssend() and MPI_Rsend(), that share the same arguments (void *buf, int count, MPI_Datatype datatype, int dest, int tag, MPI_Comm comm)
non-blocking communication
Buffered sends are considered bad for performance (the caller has to wait for the copying to take place). Non-blocking or immediate functions allow communication and computation to overlap by returning immediately upon initiating a transfer.
The downside is that the completion of the operations (for both end-points) has to be queried explicitly for both senders (so that they can re-use or modify the message buffer) and receivers (so that they can extract the content of the messages).
communication modes
Non-blocking communication can be coupled with any communication mode (MPI_Isend, MPI_Ibsend, MPI_Issend etc)
functions
send:
int MPI_Isend( void *buf, // address of data buffer (IN) int count, // number of data items (IN) MPI_Datatype datatype, // type of buffer elements (IN) int dest, // rank of destination process int tag, // label to identify the message (IN) MPI_Comm comm, // identifies the communicator (IN) MPI_Request *req // used to return a handle for checking status (OUT))
receive:
int MPI_Isend( void *buf, // addfess of data buffer (IN) int count, // number of data items (IN) MPI_Datatype datatype, // type of buffer elements (IN) int source, // rank of destination process int tag, // label to identify the message (IN) MPI_Comm comm, // identifies the communicator MPI_Request *req // used to return a handle for checking status (OUT))
check for completion
The non-blocking functions are associated with a wait command that can be blocking or non-blocking.
blocking (destroys handle)
int MPI_Wait( MPI_Request *req, // address of the handle identifying the // operation queried (IN/OUT) // the call invalidates *req by // setting it to MPI_REQUEST_NULL MPI_Status *st // addess of the structure that will hold the // comm. information (OUT))
non-blocking (destroys handle if operation was successful (i.e. *flag=1))
int MPI_Test( MPI_Request *req, // address of the handle identifying the // operation queried (IN) int *flag, // set to true is operation is complete (OUT) MPI_Status *st // addess of the structure that will hold the // comm. information (OUT))
